Combination / Storage Boiler
Combination / Storage Boiler
6, 9 or 12kW power for CH and with a 45 L water storage cylinder with 2x 1.5kW power heat elements.
Only available in single-phase version.
- AsC - SilverLine series
- There is no need to install an additional domestic hot water tank
- Cost and space-saving compared to a boiler + tank solution
- Energy class D is for C.H. Part, and class B is for hot water.

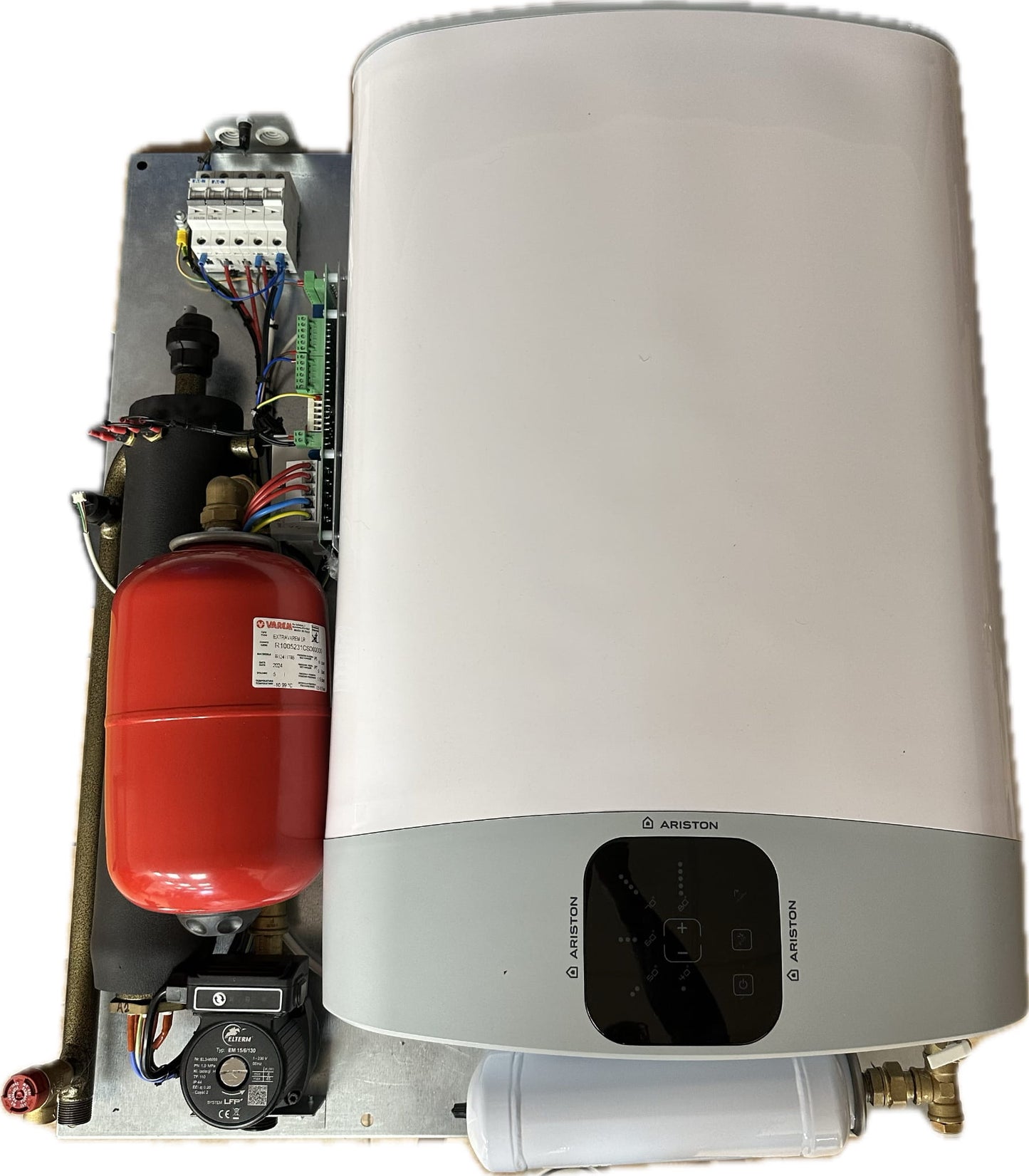

This electric combination/storage boiler is designed for flats (one—or two-bedroom flats) or houses with one bathroom with a shower. It will not work in a flat or house with bathrooms when the bath is used unless you only use the shower head.
Depending on the power choice, the 6,9 or 12kW part responsible for central heating/underfloor heating can work in areas up to 130 2m.
Low-voltage or 0V external thermostats are required to control the boiler's performance. These are widely available and can be purchased. The part responsible for hot water is a 45L domestic hot water cylinder.
The built-in water cylinder is designed to work with up to two hot water points, but it is essential to remember that the best option is to use one shower point or two taps at a time.
The best temperature for the water heater set-up is 43 -48 C degree.
The domestic water Heter Parameters:
Actual Capacity 45L
Power 2x 1,5kW =3kW Total
Max working temp 65 °C
ErP Rating B
Heating Times 1h
Standing Losses 0,96 kWh/24h at 65 °C
PLEASE NOTE: THE WATER DESCALER ON THE HOT WATER PART NEEDS TO BE INSTALLED TO AVOID LIME SCALE AND DAMAGE/BLOCKAGE TO THE INSTANTANEOUS WATER HEATER. WE ALSO HIGHLY RECOMMEND USING A MAGNETIC FILTER IN YOUR CENTRAL HEATING INSTALLATION.
We supply appliances ready for high-pressure systems. Installing on the open-went system is optional (only at C.H.). Don't hesitate to contact us for advice. Domestic water installation must be the primary pressure.
Power connection requirements:
Recommended Wiring Size: 3 x 6 m2 (10awg)
Please check for installation advice.
