Storage Boiler Atlan

Basic LED Series

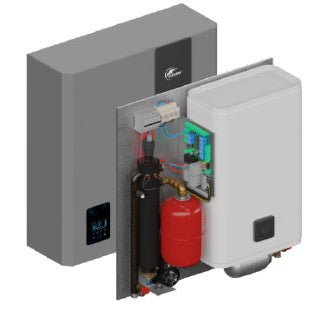

An electric boiler integrated with a 40-litre storage water heater
Reduces installation costs and space requirements
Equipped with PV-ready functionality
Built-in PV energy consumption meter
Ideal as a primary or alternative heat source in PV systems
Boiler output can be adjusted to the PV system's power
A boiler can operate in open or closed systems
Electronic temperature setting within a range of 5-70°C
Popular in residential developments
Energy efficiency class D

Only available in a single-phase version.

• AsC - SilverLine series
• There is no need to install an additional domestic hot water tank
• Cost and space-saving compared to a boiler + tank solution
• Energy class D is for C.H. Part, and class B is for hot water.

This electric combination/storage boiler is designed for flats (one— or two-bedroom) or houses with one bathroom and a shower. It will not work in a flat or house with bathrooms when the bath is used, unless you only use the shower head.

Depending on the power choice, the 6,9 or 12kW part responsible for central heating/underfloor heating can work in areas up to 130 2m.

Low-voltage or 0V external thermostats are required to control the boiler's performance. These are widely available and can be purchased. The part responsible for hot water is a 40L domestic hot water cylinder.

The built-in water cylinder is designed to work with up to two hot water points, but it is essential to remember that the best option is to use one shower point or two taps at a time.

This Storage Boiler is a must-have for its efficient storage capabilities and quick delivery. With a pre-order option and only a two-week wait time, you'll have hot water ready whenever you need it. Upgrade your heating system with this reliable and timely solution.

The best temperature for the water heater set-up is 43 -48 C degree.

The domestic water Heter Parameters:

Actual Capacity 40L

Power 2x 1,5kW =3kW Total

Max working temp 65 °C

ErP Rating B

Heating Times 1h

Standing Losses 0,96 kWh/24h at 65 °C

Twin Tank Technology.



PLEASE NOTE: THE WATER DESCALER ON THE HOT WATER PART NEEDS TO BE INSTALLED TO AVOID LIME SCALE AND DAMAGE/BLOCKAGE TO THE INSTANTANEOUS WATER HEATER. WE ALSO HIGHLY RECOMMEND USING A MAGNETIC FILTER IN YOUR CENTRAL HEATING INSTALLATION.

We supply appliances ready for high-pressure systems. Installing on the open-went system is optional (only at C.H.). Don't hesitate to contact us for advice. Domestic water installation must be the primary pressure.

Power connection requirements:

Recommended Wiring Size: 3 x 6 m2 (10awg)

A 3-year warranty covers the boiler sold by us

            *Read the warranty terms and conditions
